Automatic Glass Crusher System for Broken Bottles

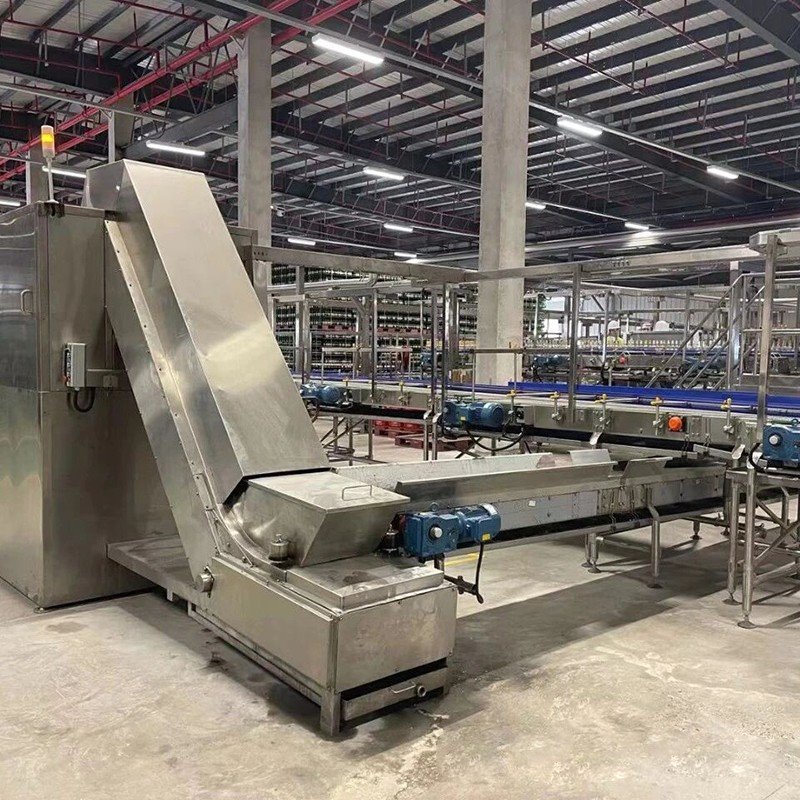

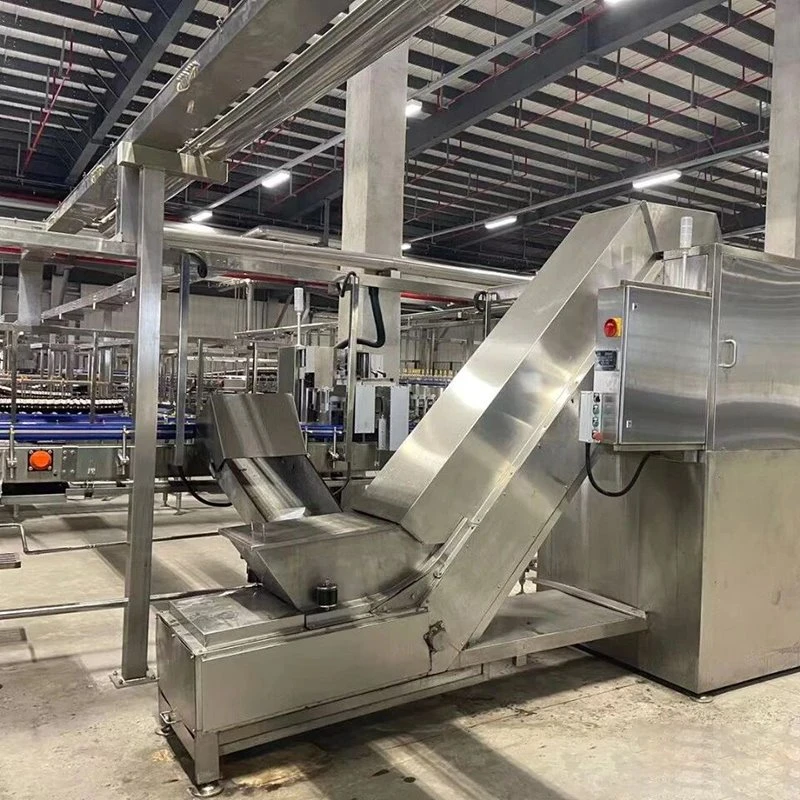

We are Wenzhou Jinggong Machinery Equipment Co., Ltd. On a beer packaging line, there are many rejected glass bottles. These bottles are rejected by the EBI machine. They cannot be used again. Throwing them away takes space. Also, broken glass can hurt people. Our Waste glass crushing lifting system turns these bad bottles into glass cullet. Then it stores the cullet. Finally, it loads the cullet into trucks. The whole process is automatic. No one needs to move the broken bottles by hand. The work flow is like this. First, the rejected bottles from the EBI go through a conveyor to a broken bottle storage hopper. There is a photoelectric sensor under the hopper. When it senses bottles, the inclined conveyor motor and crusher motor start automatically. Second, the inclined conveyor lifts the bottles to the crusher inlet. Bottles fall into the crusher. The crusher turns them into glass cullet. Third, the cullet falls into a cullet storage bin. Each bin can hold 1 to 2 cubic meters, about 3,000 to 5,000 bottles.
Smart Controls and Easy Operation

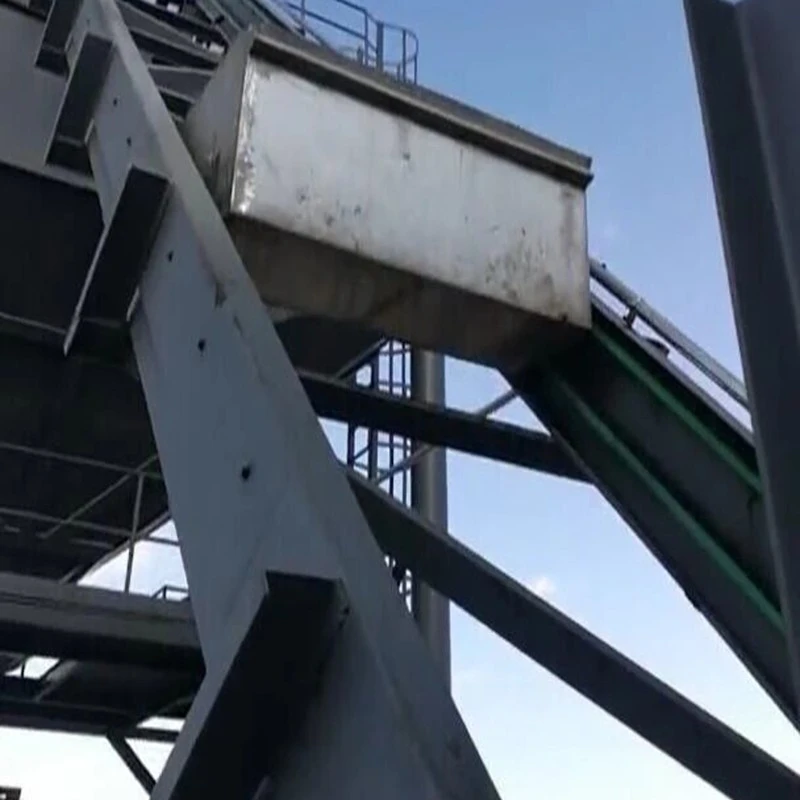

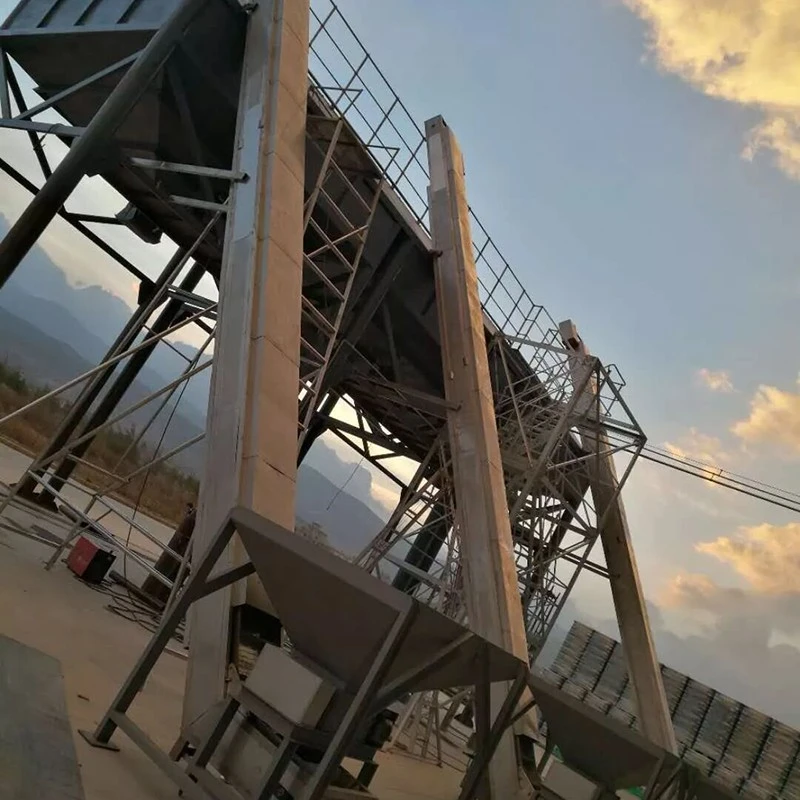

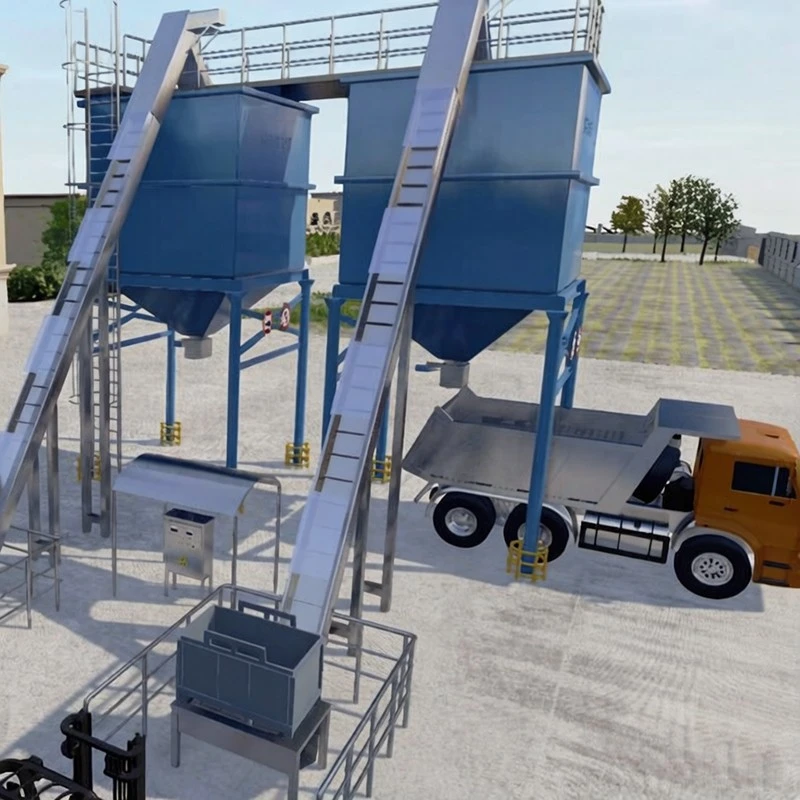

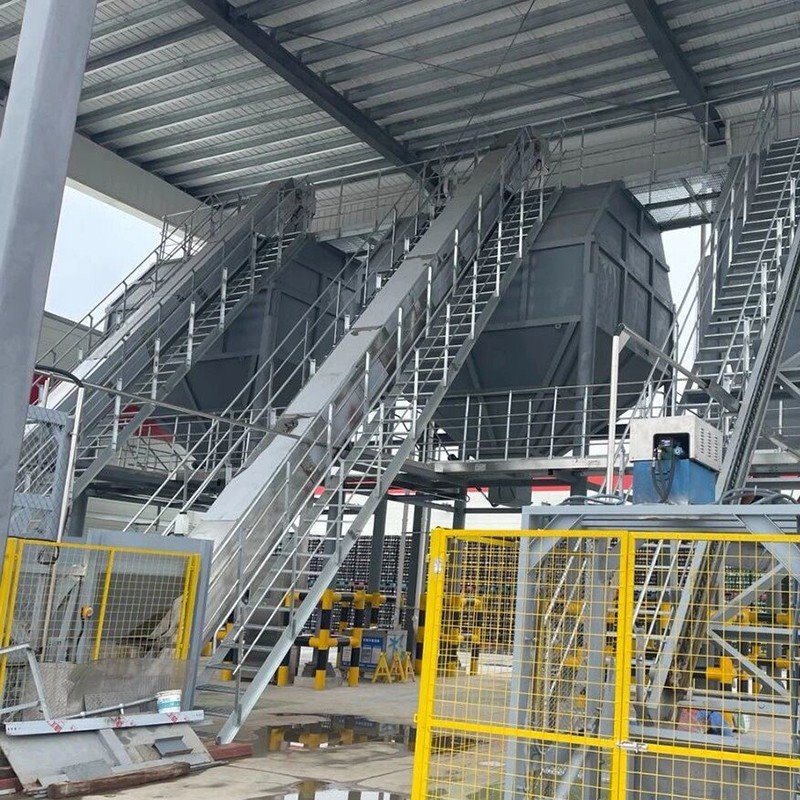

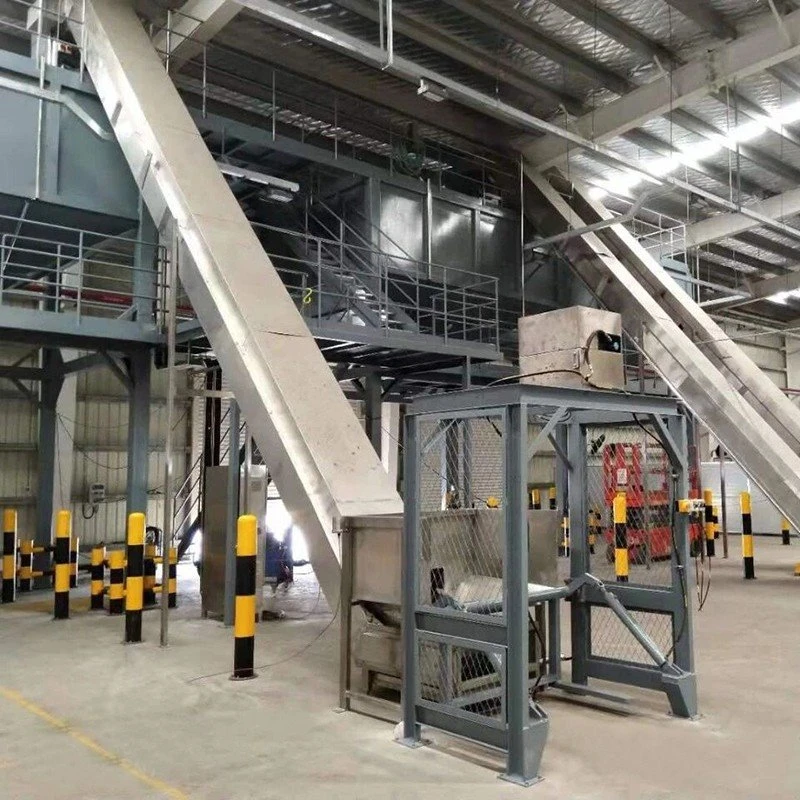

Fourth, when the bin is full, the system sends an alarm signal. An indicator light flashes. The inclined conveyor stops automatically. Workers use a hydraulic truck or forklift to move the bin outside. Fifth, the forklift takes the bin to a cullet collection center. Then the cullet goes through a lifting device to a receiving hopper. A scraper elevator lifts the cullet into a glass storage tank. Each storage tank holds 30 to 50 cubic meters. Sixth, when the storage tank is full, it sends a signal. When a transport truck arrives, an electric jaw valve at the bottom of the tank opens. The cullet falls into the truck by gravity. Then it is shipped out of the factory. Our Waste glass crushing lifting system has technical indicators as follows. Crushing efficiency is at least 25 kg per minute. Lifting efficiency is at least 30 kg per minute. Elevator speed is at least 28 rpm. The final cullet size is between 10x10 mm and 80x80 mm. This size can be adjusted. The glass powder rate is no more than 0.17%. Crusher noise does not exceed 85 decibels. The main motor power does not exceed 2.2 kW.
Key Technical Data
|
Parameter |
Value |
|
Crushing efficiency |
≥25 kg/min |
|
Lifting efficiency |
≥30 kg/min |
|
Cullet size |
10x10 mm – 80x80 mm (adjustable) |
|
Noise |
≤85 dB |
|
Motor power |
≤2.2 kW |
Warranty and Customer Cases
We worked with Budweiser. Their packaging line uses our Waste glass crushing lifting system. In China, we also serve Snow Beer and Yanjing Beer. They rate this system highly because it is very stable and rarely breaks down. Our R&D team has 8 people. They designed the control program for this system. It can link with the main control system of the packaging line. Payment is 30% deposit and 70% balance. We accept RMB and USD. Minimum order is 1 unit. We do not offer free samples. But custom samples take 15 to 30 days. You can mix different models in one order. Production cycle is 30 to 45 days. We send you production photos and videos. Packaging uses fumigation-free wooden cases with plastic film and cloth. Shipping supports FOB and EXW. Warranty is 1 year. If the goods arrive damaged, we send new ones for free. We have a dedicated after-sales team. Before the sale, we learn about your packaging line layout and give you a plan and price. We have made beer equipment for 35 years. Our factory is in Wenzhou. It covers 25,000 square meters. We have 68 employees. You can trust our equipment.
