Dry Your Spent Diatomite Easily

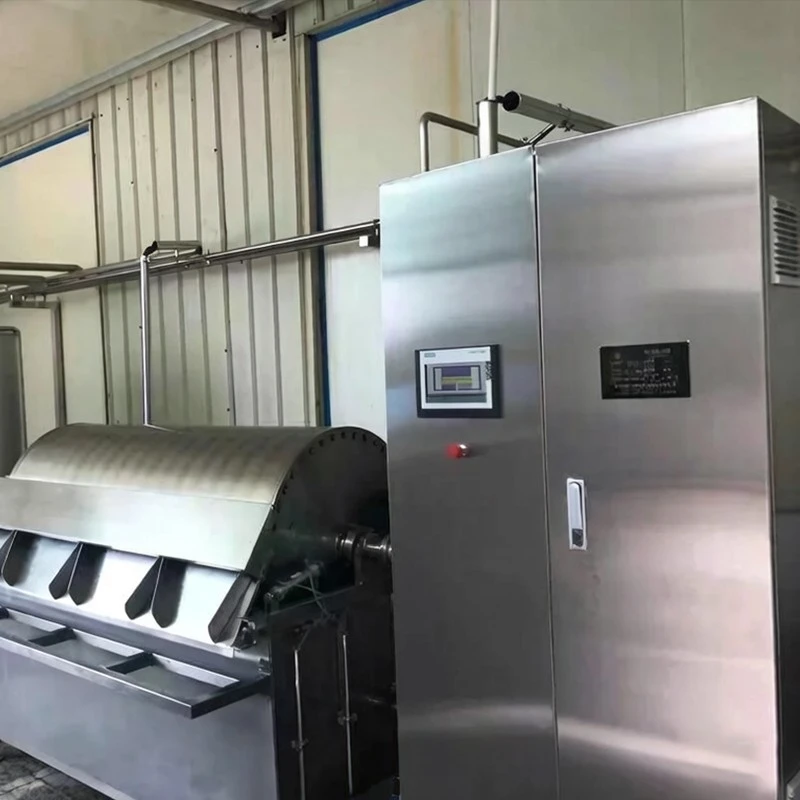

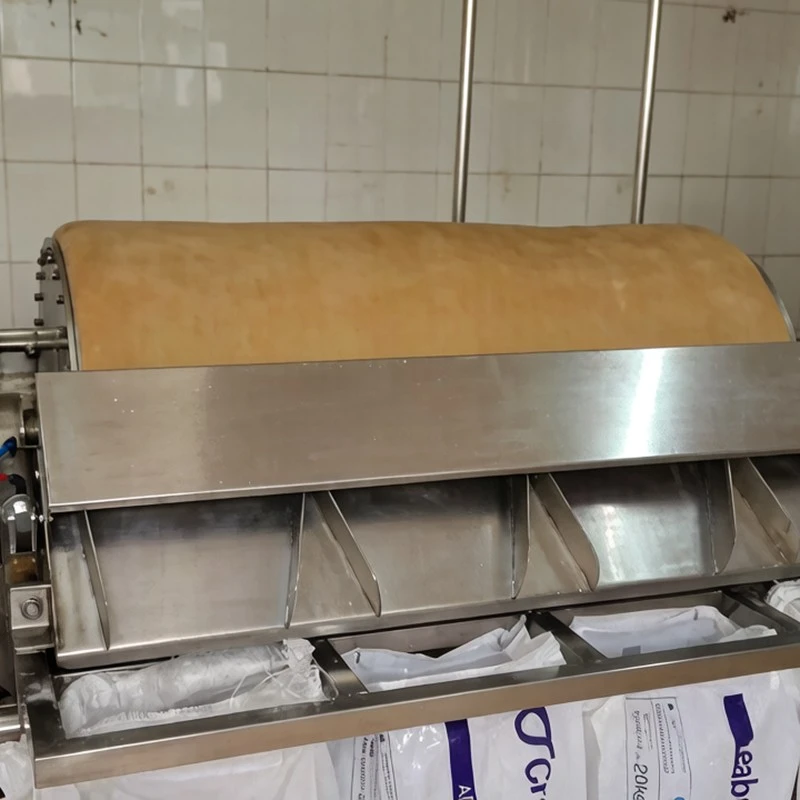

We are Wenzhou Jinggong Machinery Equipment Co., Ltd. After beer filtration, you get wet spent diatomite. The water content is very high. Throwing it away directly costs a lot for transport. It is also bad for the environment. Ourproduct removes water from the waste. The diatomite becomes dry. This makes disposal much easier. You also save on freight. This system is a vacuum drum filter. Here is how it works. A reducer turns the filter drum at a constant speed. A vacuum pump creates a pressure difference. The spent diatomite liquid flows through a filter tank. Water is sucked into a tank and drained or recycled. The solid spent diatomite sticks to the outside of the drum and forms a cake. When the cake reaches a certain thickness, a scraper moves forward. It scrapes the cake into a collection trough. Then you bag the dry waste. The cycle repeats. Water is separated. Dry waste is collected.
Proven Performance with Big Breweries
The main parts of this wasted diatomite vacuum drum filtering device are made of 304 and 316L stainless steel. Filter area is 4.0 square meters. Working pressure is -0.2 to -0.6 bar. Capacity is at least 200 kg per hour. The water content of the cake is no more than 70%. Total installed power is 14.64 kW. Floor space is 20 to 35 square meters. We worked with Carlsberg. After using ourwasted diatomite vacuum drum filtering device, their transport cost for waste fell by half. In China, we also serve Pearl River Beer and Qiandaohu Beer. They are very satisfied with the dewatering effect. Our R&D team has 8 people. They improved the scraper design. Now the discharge is cleaner. The cake has lower water content. We follow local environmental rules because this system is an environmental device.
Key Technical Data
|
Parameter |
Value |
|
Filter area |
4.0 m² |
|
Working pressure |
-0.2 to -0.6 bar |
|
Capacity |
≥200 kg/hour |
|
Cake water content |
≤70% |
|
Floor space |
20 – 35 m² |
Delivery and Support Information
We do 100% inspection before shipping. Third-party inspection is supported. Minimum order is 1 unit. One order can mix different models. Payment is 30% deposit and 70% balance. We accept RMB and USD. We do not offer free samples. Custom samples take 15 to 30 days. wasted diatomite vacuum drum filtering deviceion cycle is 30 to 45 days. We send you photos and videos. Packaging uses fumigation-free wooden cases. Shipping supports FOB and EXW. Warranty is 1 year. Transport damage is replaced for free. We have a dedicated after-sales team. Before the sale, we learn how much spent diatomite you produce. Then we give you a plan. During the sale, we supervise production. After the sale, we help you install and debug. We have made beer equipment for 35 years. Our factory is in Wenzhou. It covers 25,000 square meters. We have 68 employees. We hold 58 patents. One of them is about filtration. Many breweries use ourproduct.
