Efficient Product For Wort Separation

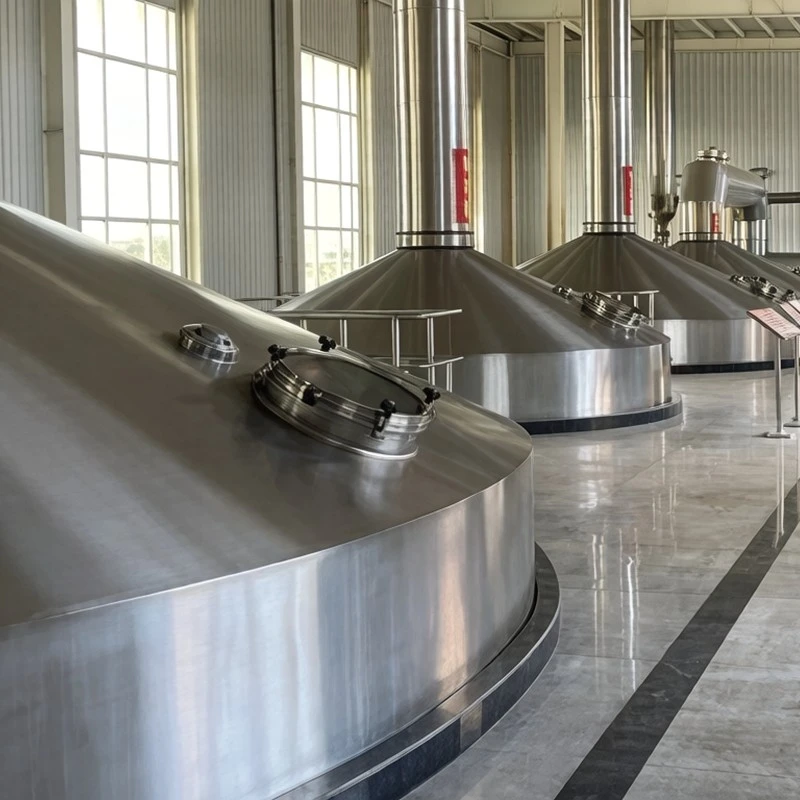

We are Wenzhou Jinggong Machinery Equipment Co., Ltd. We have made beer equipment for 35 years. Our factory is 25,000 square meters. We have 68 employees. Our R&D team has 8 people. We work with international brands like Heineken, Budweiser, and Carlsberg. In China, we serve Snow, Yanjing, Pearl River, and Qiandaohu Beer. The product is a key device in the brewhouse. It separates wort from spent grains. Our Industrial brewing product has an inner shell of SUS304 stainless steel. The filter part uses aluminum silicate fiber blankets for insulation. There is an upper inlet pipe for recirculation and sparging. The internal sparging device is a double-umbrella flow plate. We equip standard spray balls. There are 4 pneumatic poppet valves at the bottom for feeding. These valves have an automatic interlock with the raking knife. On top, there is a DN500 quick-opening manhole with a sight glass and a DC24V light. The manhole has an open-cover detection with an indicator light. Cleaning uses standard spray balls. There is one electric spent grain discharge door at the bottom. This door has a limit switch for detection. We also include a balance column.
Precision Design For High Filtration Efficiency
The filter plate is milled. The material is SUS304. The opening rate is about 10%. The surface is bright and flat. You can open part of the filter plate for easy cleaning. It does not deform. The distance between the filter plate and the tank bottom is 2 to 5 cm. There is a bottom cleaning device at the tank bottom. It has at least 40 evenly distributed nozzles. The raking device is made of stainless steel 304. It is installed firmly and runs smoothly. The rotation speed is controlled by a frequency converter. The rake blade angle is less than 15 degrees. The rake frame is fixed to the tank shell. The motor and gearbox run at 6 rpm. The power is 11 kW. The rake blades are lifted hydraulically. The inner surface finish is ≤0.6um. Our Industrial brewing product is custom-made. We do not offer free samples. Custom samples take 15 to 30 days. Minimum order is 1 unit. You can mix different models or colors in one order. Payment is 30% deposit and 70% balance. We accept RMB and USD.
Technical Specifications Of Our Industrial Brewing Product
|
Parameter |
Value |
|
Inner shell material |
SUS304 stainless steel |
|
Insulation |
Aluminum silicate fiber blanket |
|
Sparging device |
Double-umbrella flow plate |
|
Bottom feed valves |
4 pneumatic poppet valves with interlock |
|
Manhole |
DN500 quick-opening with sight glass |
|
Light |
DC24V |
|
Cleaning |
Standard spray balls |
|
Spent grain discharge |
1 electric door with limit switch |
|
Filter plate material |
SUS304, milled |
|
Filter plate opening rate |
~10% |
|
Filter plate to bottom distance |
2 – 5 cm |
|
Bottom cleaning nozzles |
≥40 units |
|
Rake drive power |
11 kW |
|
Rake speed |
6 rpm (frequency controlled) |
|
Rake blade angle |
≤15 degrees |
|
Rake lift |
Hydraulic |
|
Inner surface roughness |
≤0.6 μm |
Proven Performance With Top Breweries
We offer a 1-year warranty. If the goods arrive damaged, we send replacements for free. We have a dedicated after-sales team. Before the sale, we ask your needs and give you a plan and price. During the sale, we supervise production. After the sale, we help you solve problems. The Industrial brewing lauter tunion cycle is 30 to 45 days. We follow a strict schedule. We keep enough spare parts. We send you photos or videos during Industrial brewing lauter tunion. We use fumigation-free wooden cases with plastic film and cloth. We helped Heineken and Budweiser with similar Industrial brewing lauter tun systems. Their wort filtration efficiency is very high. So you can trust our design and processing accuracy.
