Professional Product For Wort Production

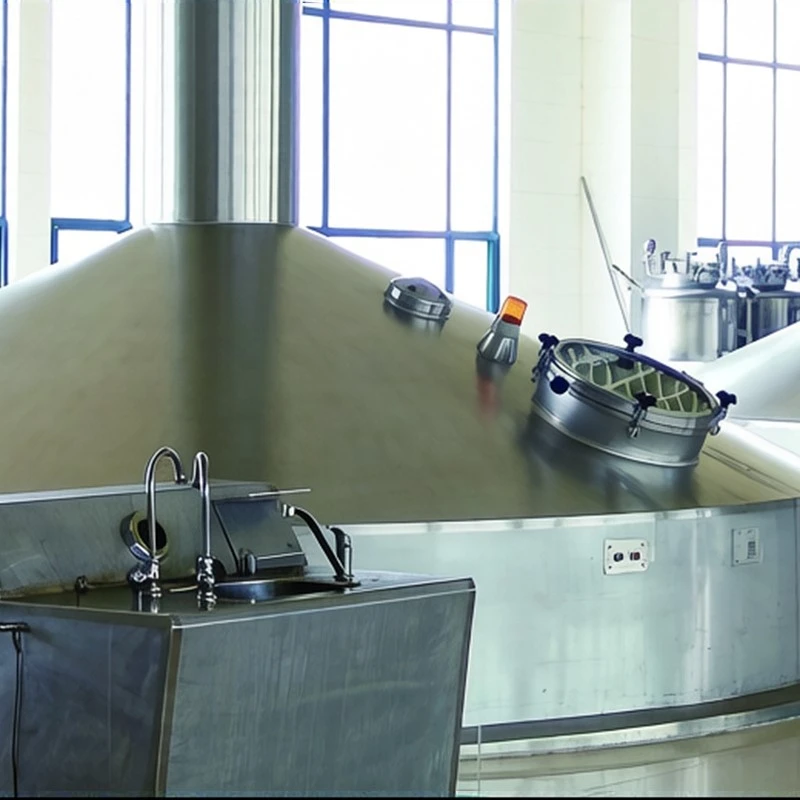

We are Wenzhou Jinggong Machinery Equipment Co., Ltd. We have been in the beer equipment industry for 35 years. Our factory is 25,000 square meters. We have 68 employees. Our R&D team has 8 people. We work with big brands like Heineken, Budweiser, and Carlsberg. In China, we also serve Snow, Yanjing, Pearl River, and Qiandaohu Beer. The product is one of our core products. It turns gelatinized starch into wort. Our product has an inner shell of SUS304 stainless steel. We use steam heating with a coil jacket. The jacket holds 3 bar pressure. The heating speed is 1 to 1.5 degrees per minute. We use aluminum silicate fiber blankets for insulation. The agitator is at the bottom. Agitator speed is 30 rpm. You can adjust it. There is a steam outlet pipe on top. Pipe diameter is 450 mm. We add a condensate collector. We install a liquid level pressure probe. It shows the level and controls the empty level. The temperature sensor measures from -10°C to 150°C. Inner surface finish is ≤0.6um. There is a DN500 quick-opening manhole with a sight glass and a DC24V light. The manhole has an open-cover detection. An indicator light shows the status. Cleaning uses a standard spray ball. The outlet is horn-shaped.
Quality Control And Custom Options For Large Beer Brewing Equipment
We care a lot about quality. We use fully automatic machines. We have ISO9001 certification. We do 100% inspection before shipping. You can also ask a third party to inspect. We support that. The large beer brewing equipment is non-standard and custom-made. So we do not offer free samples. Custom sample development takes 15 to 30 days. Minimum order is 1 unit. You can mix different models in one order. Standard payment is 30% deposit and 70% balance. We accept RMB and USD. Other currencies are negotiable. We fully follow local environmental rules. We provide a 1-year warranty. If the goods arrive damaged, we replace them for free. We have a dedicated after-sales team. Before the sale, we ask your needs and give you a plan and price. During the sale, we supervise large beer brewing equipmention. After the sale, we help you solve problems. The production cycle for the product is 30 to 45 days. We follow a strict schedule. We keep enough spare parts. During production, we send you photos or videos. Repeat orders have the same stable quality.
Technical Specifications Of Our product
|
Parameter |
Value |
|
Inner shell material |
SUS304 stainless steel |
|
Heating method |
Steam coil jacket |
|
Jacket pressure resistance |
3 bar |
|
Heating rate |
1 – 1.5 °C per minute |
|
Insulation material |
Aluminum silicate fiber blanket |
|
Agitator speed |
30 rpm (adjustable) |
|
Steam outlet pipe diameter |
450 mm |
|
Temperature sensor range |
-10°C to +150°C |
|
Inner surface roughness |
≤0.6 μm |
|
Manhole size |
DN500 with sight glass |
|
Light voltage |
DC24V |
|
Cleaning device |
Standard spray ball |
|
Production lead time |
30 – 45 days |
|
Custom sample lead time |
15 – 30 days |
|
Minimum order quantity |
1 unit |
|
Warranty |
1 year |
|
Payment terms |
30% deposit, 70% balance |
|
Accepted currencies |
RMB, USD (others negotiable) |
|
Packaging |
Fumigation-free wooden case + plastic film + cloth |
|
Delivery terms |
FOB, EXW |
Trusted by Major Breweries Worldwide
Many large breweries use our product. We made similar equipment for Budweiser and Carlsberg. So you can trust our design and welding technology. We use fumigation-free wooden cases for packaging. We add plastic film and cloth outside. Shipping supports FOB and EXW. Our after-sales service is always ready. We help you from start to finish. If you need a reliable product, we are the right partner.
