Real Commercial Brewing Starts Here

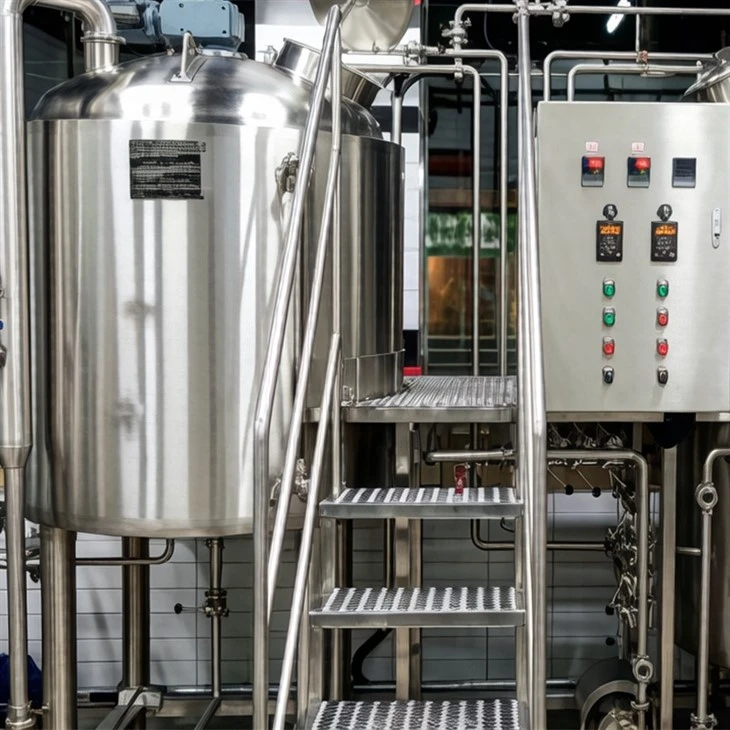

A 500L brewhouse is already a small commercial system. It is good for professional craft breweries, brewpubs, or hotels that brew their own beer. You can brew one batch per day. That gives you 30 tons of beer per month. That amount can cover several pubs in a mid-size city. Our product is built to industrial standards. It is not a simple or cheap system. Many craft brands start their business with this product.

Full Industrial Features for Quality Beer

This complete product includes a mash tun, lauter tun, boiling kettle, whirlpool tank, glycol tank, hot water tank, CIP tank, and fermenters. The mash tun and boiling kettle are separate. This lets you mash and boil at the same time. It saves your brewing day. The lauter tun has a rake. It can automatically cut the grain bed. You do not need to do it by hand. The whirlpool tank has a tangential inlet for good settling. All materials are SUS304. The fermenters and bright beer tanks have an inner roughness of ≤0.4μm. They use corrugated plate jackets and cone coil jackets. We use laser automatic welding. The tank working pressure is 0.095Mpa. Test pressure is 0.12Mpa. We add safety valves, vacuum valves, pressure sensors, and temperature sensors. You can choose an automatic control system or manual operation. The technical details: heating rate is 1-1.5°C per minute. Mixer speed is 30 rpm with variable frequency. Boiling intensity is 8% with a built-in 316L heater. The lauter tun filter plate is milled with 10% open area. The rake is hydraulic lift with 6 rpm speed and 11KW power. These numbers are the same as large equipment. So the beer from this 500L brewhouse is as good as beer from a big factory.

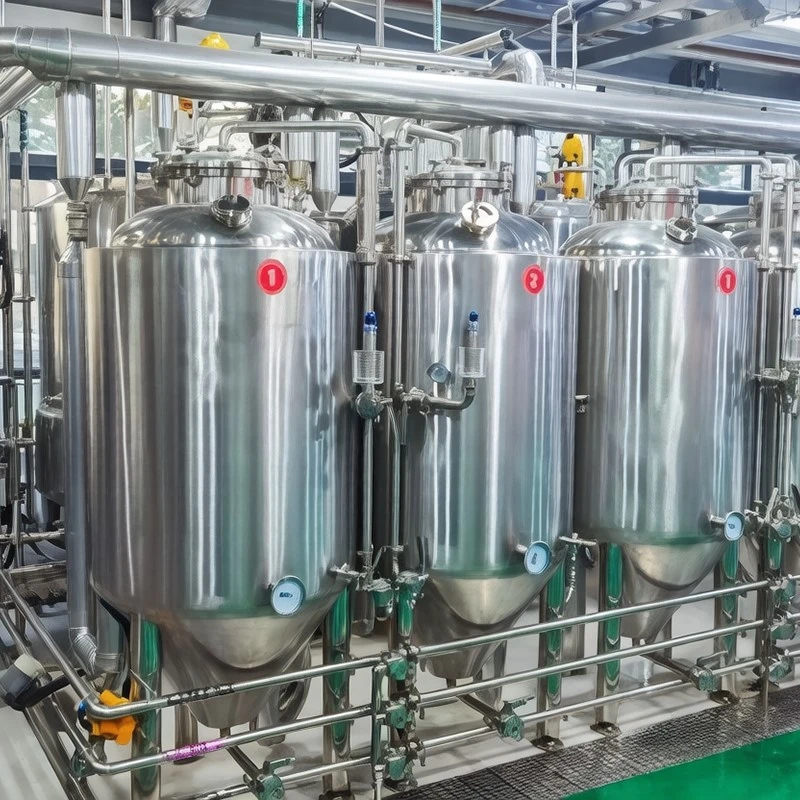

23-500L

Trusted Service and Easy Purchase

We have worked with big names like Budweiser, Carlsberg, Snow, and Yanjing. Many craft brands also use our product when they start. Later they come back to buy more from us. Our R&D team of 8 people can adjust details for your recipes. The smallest order is 1 set of this 500L brewhouse. You can mix equipment types. Payment is 30% deposit and 70% balance. We accept RMB and USD. We do not give free samples. Custom sample time is 15 to 30 days. Production takes 30 to 45 days. We send photos and videos. Packaging is a fumigation-free wooden box. Shipment is FOB or EXW. The warranty is 1 year. Free replacement for shipping damage. Our after-sales service is handled by one person. Our company has 58 patents. We are a national high-tech enterprise and a specialized SME in Zhejiang. The product has been improved for many years. It is very mature. Many customers have used it for ten years and it still works well.

Key Technical Data

Parameter	Details
Batch size	500 liters
System components	Mash tun, lauter tun, boil kettle, whirlpool, glycol tank, hot water tank, CIP tank, fermenters
Material	SUS304 (SUS316L for heater)
Inner roughness (fermenters)	≤0.4μm
Heating rate	1-1.5°C per minute
Mash mixer speed	30 rpm (variable frequency)
Lauter tun rake	Hydraulic lift, 6 rpm, 11 KW
Filter plate open area	10% (milled)
Boiling intensity	8%
Working pressure (fermenters)	0.095Mpa
Test pressure	0.12Mpa
Production time	30 to 45 days
Warranty	1 year
