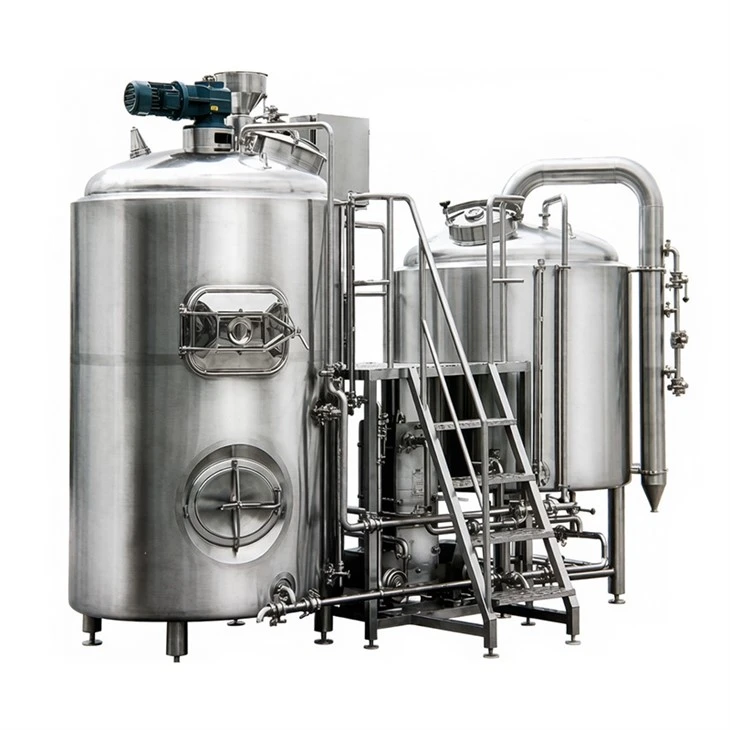

300L Brewhouse

This set includes a mash and boiling kettle combined, a lauter and whirlpool combined, a glycol tank, and fermenters. We put the mash tun and boiling kettle into one pot. And we put the lauter tun and whirlpool into one tank. This saves space and lowers the cost. It is good for users with a small room. You can get 4 to 8 fermenters. Each holds 300 liters. You can make many beer styles. Heating can be electric or steam. If you have a steam source, steam heating saves electricity. If not, electric heating is easy. We give electric heating tubes with enough power. The wort heats up 1 to 1.5 degrees per minute. During mashing, the mixer runs at 30 rpm and can change speed. During boiling, the built-in heater circulates the wort. Boiling intensity is 8%. The inner tank is SUS304. The jacket and coils are also stainless steel. The insulation is aluminum silicate fiber blanket. The outside surface is no more than 10°C above room temperature. The tank top has a safety valve, vacuum valve, cleaning ball, sight glass, and light. The fermenters have a sampling valve. You can take samples anytime to check sugar and pH. We have served over a hundred craft breweries in China. Some of them started with a product and later grew to 3000L. Their first system came from us. Our R&D team of 8 people transferred large brewery mashing curves to this small equipment. So the beer quality is very good.
