The Top End of Small Craft Brewing
A 1000L brewhouse is the upper limit of small craft equipment. Beyond this, you go into medium size. This batch size is for a craft brewery that already has a good market. One batch per day gives you 30 tons per month. With more fermenters for rotation, you can reach 60 to 90 tons per month. That can supply multiple sales channels. Many of our customers begin with 100L or 200L and later upgrade to a product.
Complete Line with High Efficiency

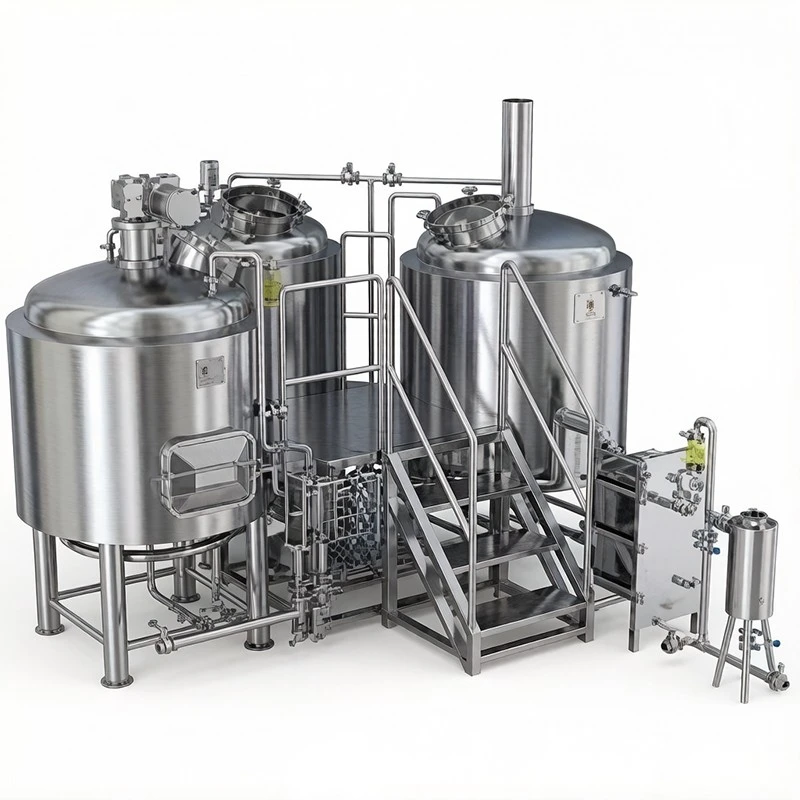

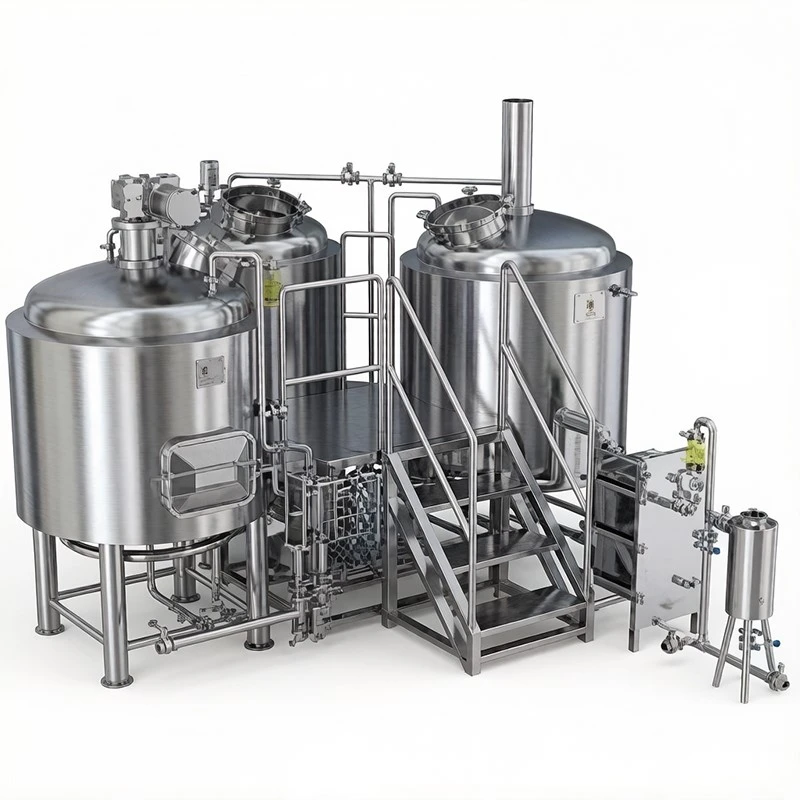

Our 1000L brewhouse is a full brewhouse line. It includes a mash tun, lauter tun, boiling kettle, whirlpool tank, glycol tank, hot water tank, and CIP tank. You also get fermenters and bright beer tanks. You can choose 4, 6, 8, or more tanks. Each holds 1000 liters. The brewhouse can make 2 to 3 batches per day. If you add a holding tank, the efficiency goes even higher. The mash and boiling kettles use steam heating. They have coil jackets that can take 3 bar pressure. The insulation is aluminum silicate fiber blanket. The mash tun has a bottom mixer at 30 rpm. The lauter tun has a hydraulic lift rake. The filter plate is milled with 10% open area. The boiling kettle has a built-in 316L heater with low-pressure dynamic boiling. It comes with a contraction tube and umbrella cover. The whirlpool tank has a tangential inlet and a cone bottom with a waste groove. The fermenters and bright beer tanks use corrugated plate jackets and cone coils. We use laser welding. Inner roughness is ≤0.4μm. The top has a safety valve, vacuum valve, cleaning ball, pressure sensor, and temperature sensor. The sampling valve is manual and sterile. All parts meet food safety standards.
Proven Support and Simple Terms
We have helped many customers move up from 100L or 200L to a product. They come back to us because the quality is good and the service is reliable. Before you buy, we calculate your needed capacity. For example, we tell you how many fermenters you need to meet your weekly production. After delivery, we send people to install and debug your 1000L brewhouse. We also train your operators. Our factory started in 1991. We have made beer equipment for over 30 years. We have served over a hundred breweries including Heineken, Budweiser, and Carlsberg. The smallest order is 1 set. You can mix colors and models. Payment is 30% deposit and 70% balance. We accept RMB and USD. No free samples. Custom sample time is 15 to 30 days. Production time is 30 to 45 days. We send progress photos. Packaging is a fumigation-free wooden box. Shipment is FOB or EXW. The warranty is 1 year. Free replacement for shipping damage. We hold ISO9001, ISO14001, ISO45001, a pressure vessel manufacturing license, and a GC2 pipeline installation qualification. You can trust these credentials.
Key Technical Data
|
Parameter |
Details |
|
Batch size |
1000 liters |
|
Brewhouse components |
Mash tun, lauter tun, boil kettle, whirlpool, glycol tank, hot water tank, CIP tank |
|
Fermenters |
4+ units (1000L each, as needed) |
|
Material |
SUS304 |
|
Heating |
Steam with 3bar coil jackets |
|
Mash mixer speed |
30 rpm |
|
Lauter tun rake |
Hydraulic lift |
|
Filter plate open area |
10% milled |
|
Boiling intensity |
8% with 316L heater |
|
Whirlpool inlet |
Tangential, cone bottom with waste groove |
|
Inner roughness (fermenters) |
≤0.4μm |
|
Working pressure (fermenters) |
0.095Mpa / test 0.12Mpa |
|
Production time |
30 to 45 days |
|
Warranty |
1 year |
|
Certifications |
ISO9001, ISO14001, ISO45001, pressure vessel license, GC2 |
