Medium Scale for Regional Breweries

A 2000L brewhouse is a medium-sized system. This scale is for a regional beer factory. Two batches per day give you 4000 liters. With 20 production days per month, that is 80 tons. That is enough for a prefecture-level city market. Our product uses full automation. One person can run the whole brewhouse. Many regional brands in China and overseas use this size to grow their business.

Full Automation with Industrial Standards

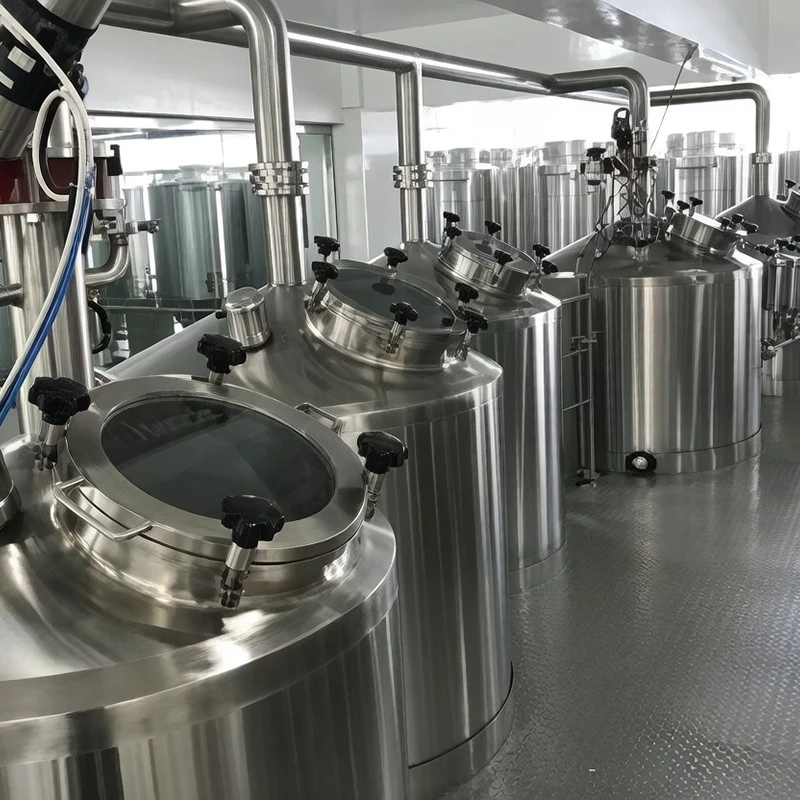

This 2000L brewhouse includes a mash tun, lauter tun, boiling kettle, whirlpool tank, hot water tank, glycol tank, and CIP tank. You also get fermenters and bright beer tanks. Each holds 2000 liters. The brewhouse links with the fermentation system. It automatically does mashing, lautering, boiling, whirlpool, cooling, and transfer to fermenters. We give you the control program. You can use a touch screen or a computer. Technical data follows industrial standards. Heating rate is 1-1.5°C per minute. Mash mixer speed is 30 rpm with variable frequency. Lauter tun rake speed is 6 rpm with 11 KW power. The rake lifts hydraulically. Filter plate open area is 10%. Boiling intensity is 8% with a built-in 316L heater. The whirlpool has a tangential inlet and a 2% bottom slope. All tanks have inner roughness ≤0.4μm for fermenters and bright beer tanks, and ≤0.6μm for brewhouse tanks. Material is SUS304. Jackets and coils are also 304. Insulation is aluminum silicate fiber blanket. The top has safety valves, vacuum valves, cleaning balls, sight glasses, and pressure and temperature connections. The sampling valve is manual and sterile. The CIP system cleans all tanks and pipes automatically.

25-2000L

Complete Service from Site Visit to Training

We have worked with regional beer brands like Qiandaohu Beer and Zhujiang Beer in China. Some of their medium lines use our equipment. Overseas, our product has been sold to Russia, Spain, and Southeast Asia. Customers say it is stable and has high automation. Before you buy, we send an engineer to check your site. Then we give you a process flow diagram and equipment layout. We give a clear price list. During production, we send a weekly progress report. After the 2000L brewhouse is ready, you can come to our factory to inspect it. Or you can hire a third party. After delivery, we send an installation team. It usually takes 2 to 3 weeks to install and debug. Then we train your workers. The smallest order is 1 line. You can mix equipment models. Payment is 30% deposit and 70% balance. We accept RMB and USD. No free samples. Production time is 30 to 45 days for standard configurations. Packaging is a fumigation-free wooden box. Shipment is FOB or EXW. The warranty is 1 year. Free replacement for shipping damage. We have 58 patents. We are a national high-tech enterprise and a specialized SME in Zhejiang. The product has been exported to over ten countries.

Key Technical Data

Parameter	Details
Batch size	2000 liters
System components	Mash tun, lauter tun, boil kettle, whirlpool, hot water tank, glycol tank, CIP tank, fermenters, bright beer tanks
Material	SUS304
Inner roughness (fermenters)	≤0.4μm
Inner roughness (brewhouse)	≤0.6μm
Heating rate	1-1.5°C per minute
Mash mixer speed	30 rpm (variable frequency)
Lauter rake speed	6 rpm, 11 KW, hydraulic lift
Filter plate open area	10%
Boiling intensity	8% (316L heater)
Whirlpool slope	2%
Control	Full automation (touch screen or PC)
Production time	30 to 45 days
Warranty	1 year
Export markets	Russia, Spain, Southeast Asia, etc.
